SONY CORPORATION

CDU-920S

Device Type

CD-ROM

Interface

SCSI-2

Spin Rate

2x

Read Formats Supported

Audio combined, CD Bridge, CD-Audio, CD-G, CD-I, CD-I Ready, CD-ROM (mode 1 & 2)CD-R (Orange Book part 2), CD-XA, Photo-CD, Video CD

Write Formats Supported

Audio combined, CD-Audio, CD-Bridge, CD-I, CD-Ready, CD-ROM (mode 1 & 2), CD-XA

View

Bottom

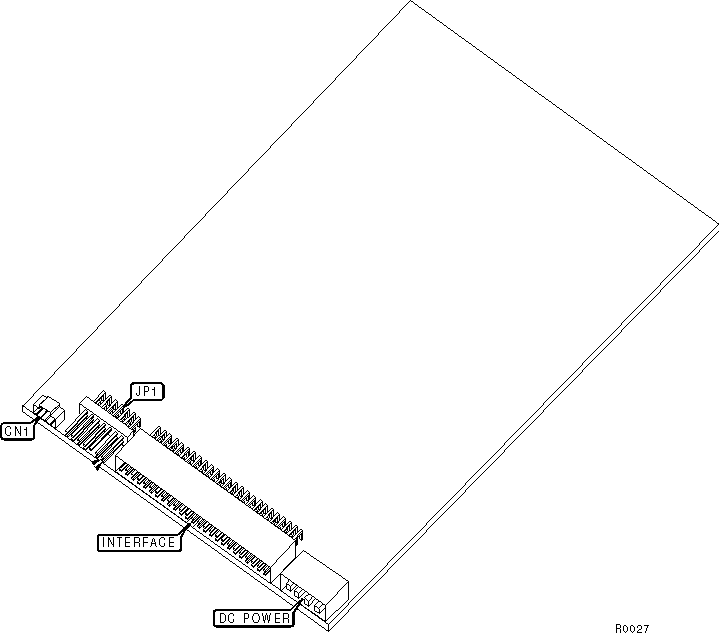

CONNECTIONS

Function

Label

Audio line out

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

Enables test mode

JP1/1

Closed

Enables normal operation

JP1/1

Open

»

Allow insertion & removal of CD’s by command or eject button

JP1/2

Closed

Prevent insertion & removal of CD’s

JP1/2

Open

»

Parity enabled

JP1/7

Closed

Parity disabled

JP1/7

Open

DRIVE SELECT ID

Drive ID

JP1/4

JP1/5

JP1/6

0

Open

Open

Open

1

Open

Open

Closed

2

Open

Closed

Open

3

Open

Closed

Closed

4

Closed

Open

Open

5

Closed

Open

Closed

»

6

Closed

Closed

Open

7

Closed

Closed

Closed
