CHAPTER SEVEN

EARLY DESIGN RHODES PIANOS - TONE SOURCE (Prior to July 1975)

In the broad claim of our original patent, No.2,972,922, the Tone Source is described as a "tuning fork of unequal legs". In other words, we deviate from the traditional concept of a tuning fork in that, while both legs of the fork vibrate at the same frequency, the lower leg is more resilient and, as a consequence, responds more positively to the blow of a Hammer. It is to our advantage to construct this lower leg in such a way as to render it as resistant to wear and fatigue as possible. In pursuit of this, the Tone Bar Assembly has gone through three major changes through the years.

  1. In the original Piano, the Tone Bar Assembly (tuning fork) was a single piece of cast iron which was suspended in a metal channel. The bottom leg was a length of piano wire of a diameter of .075" (1.905mm) (Figure 7-1).

Rhodes First Stage Tone Bar Assembly

Figure 7-1. RHODES First Stage Tone Bar Assembly

  1. In the next stage the Assembly was constructed as shown in Figure 7-2. Several improvements were accomplished by this change.

    1. The Tone Generator Assembly (Figure 7-2) was now removeable for easy replacement.

    2. Timbre adjustment was more easily accomplished.

    3. Escapement distance was more easily adjusted.

  2. In an attempt to further improve the tone quality and at the same time to reduce weight, we came up with the current Tone Bar design, which we call the "twisted steel bar" (patent No. 3,644,656) (Figure 7-3).

Rhodes Second Stage Tone Bar Assembly

Figure 7-2. RHODES Second Stage Tone Bar Assembly

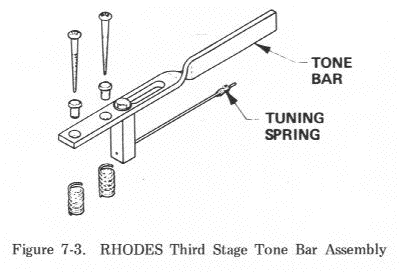

Rhodes Third Stage Tone Bar Assembly

Figure 7-3. RHODES Third Stage Tone Bar Assembly

THE TINE

In our original design, the "Tine" (bottom leg of tbe tuning fork) consisted of a length of piano wire .075 (1.905mm) in diameter (Figure 7-4). Fine tuning was accomplished by means of a slideable length of coil Spring which was crimped to produce a friction fit.

Rhodes Original Tine Design

Figure 7-4. RHODES Original Tine Design

Later, in an attempt to distribute the vibrational shock created by a heavy Hammer blow, the wire was tapered (Figure 7-5).

Rhodes Second Stage Tine Design

Figure 7-5. RHODES Second Stage Tine Design

This taper was accomplished by the "centerless grinding process". This new configuration added considerable life expectancy to the Tine.

As a result of some six years of developmental procedure, a major breakthrough was accomplished in the processing of these new tapered Tines. Instead of the centerless grinding process, we introduced the current Tine (Figure 7-6). In this new innovation the Tine is formed by the swaging process, a process which by its very nature adds strength to the part by compacting the outer surface (skin) of the Tine.

Rhodes Swaged Tine Design

Figure 7-6. RHODES Swaged Tine Design

In a comparative shock test, our first Tine withstood 40,000 heavy Hammer blows; the second Tine withstood 1,500,000 blows, and the swaged Tine was still going after 6,000,000 blows.

While it is the nature of even the finest steel to deteriorate when shocked by stresses beyond its elastic limit and thus finally to crystalize and break, we feel that in this new process we now have reached the ultimate in providing a part capable of withstanding indefinitely all but the most withering treatment.
